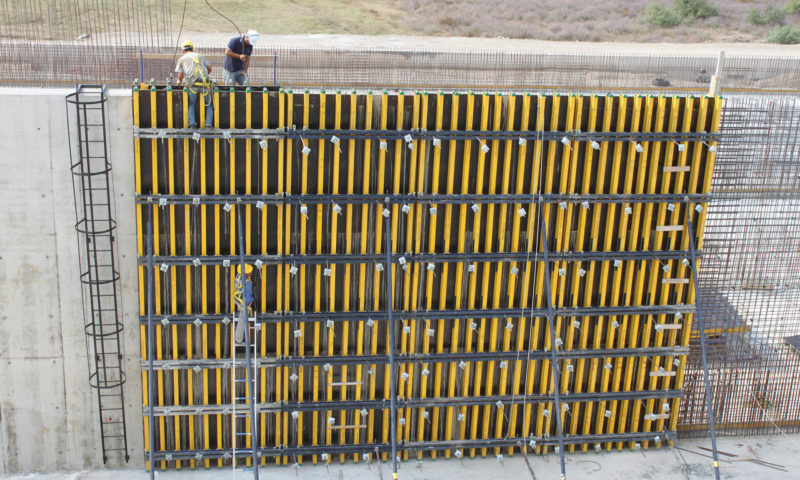

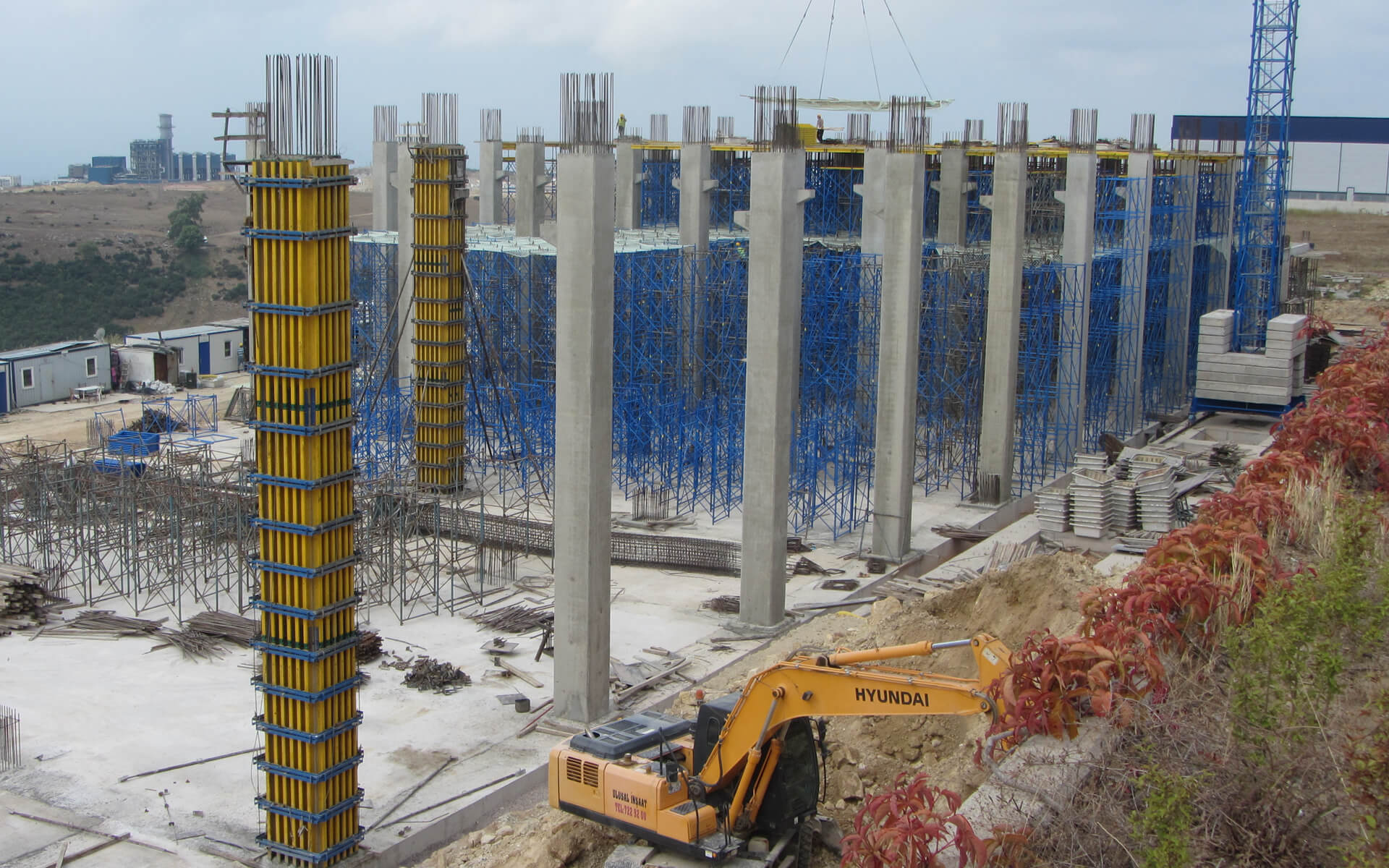

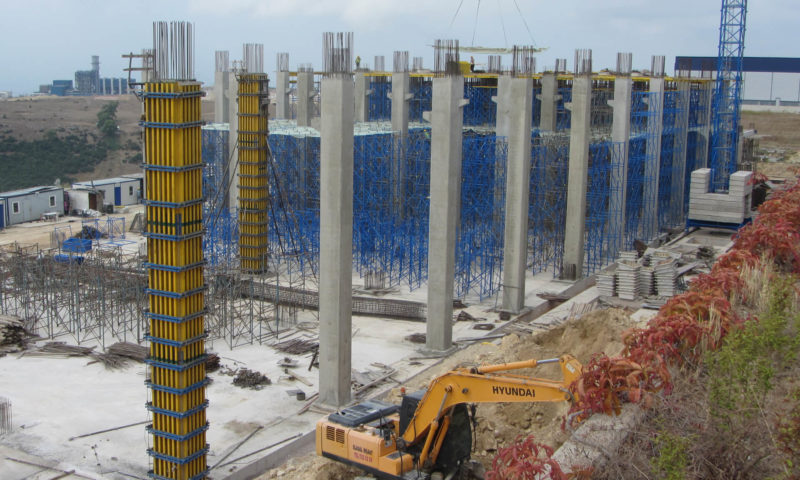

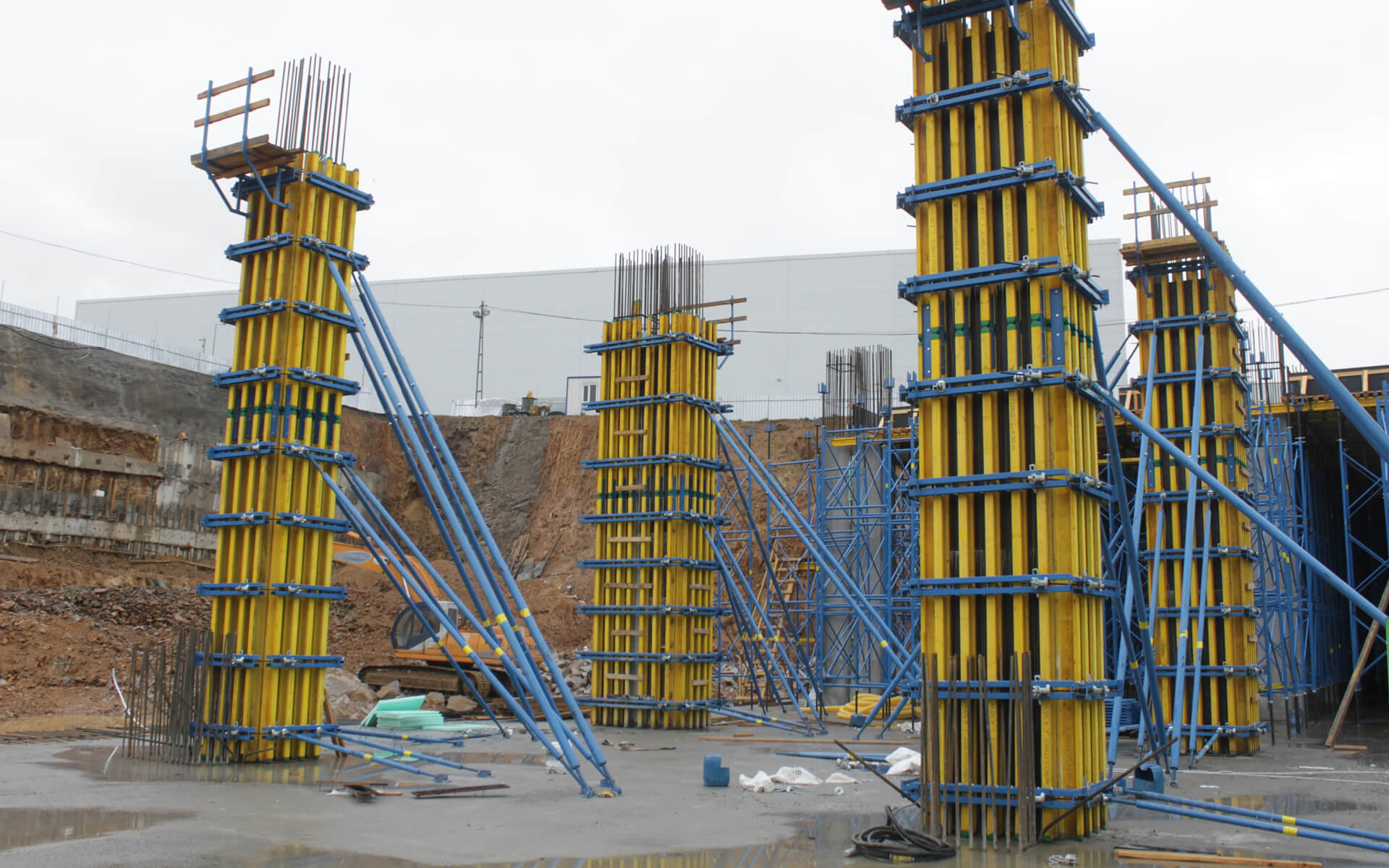

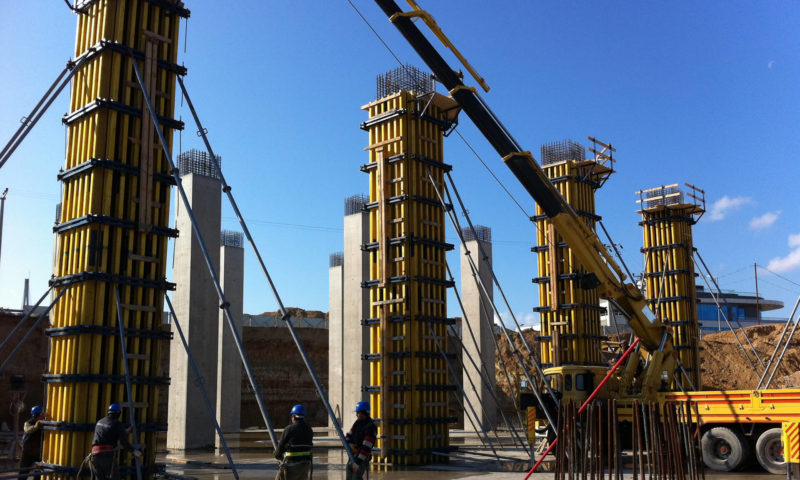

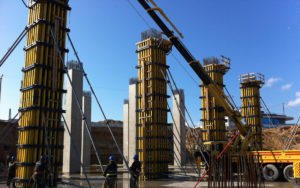

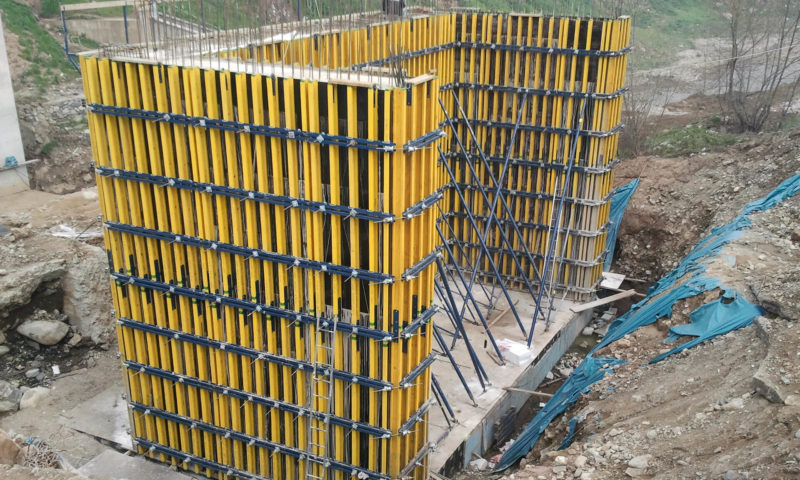

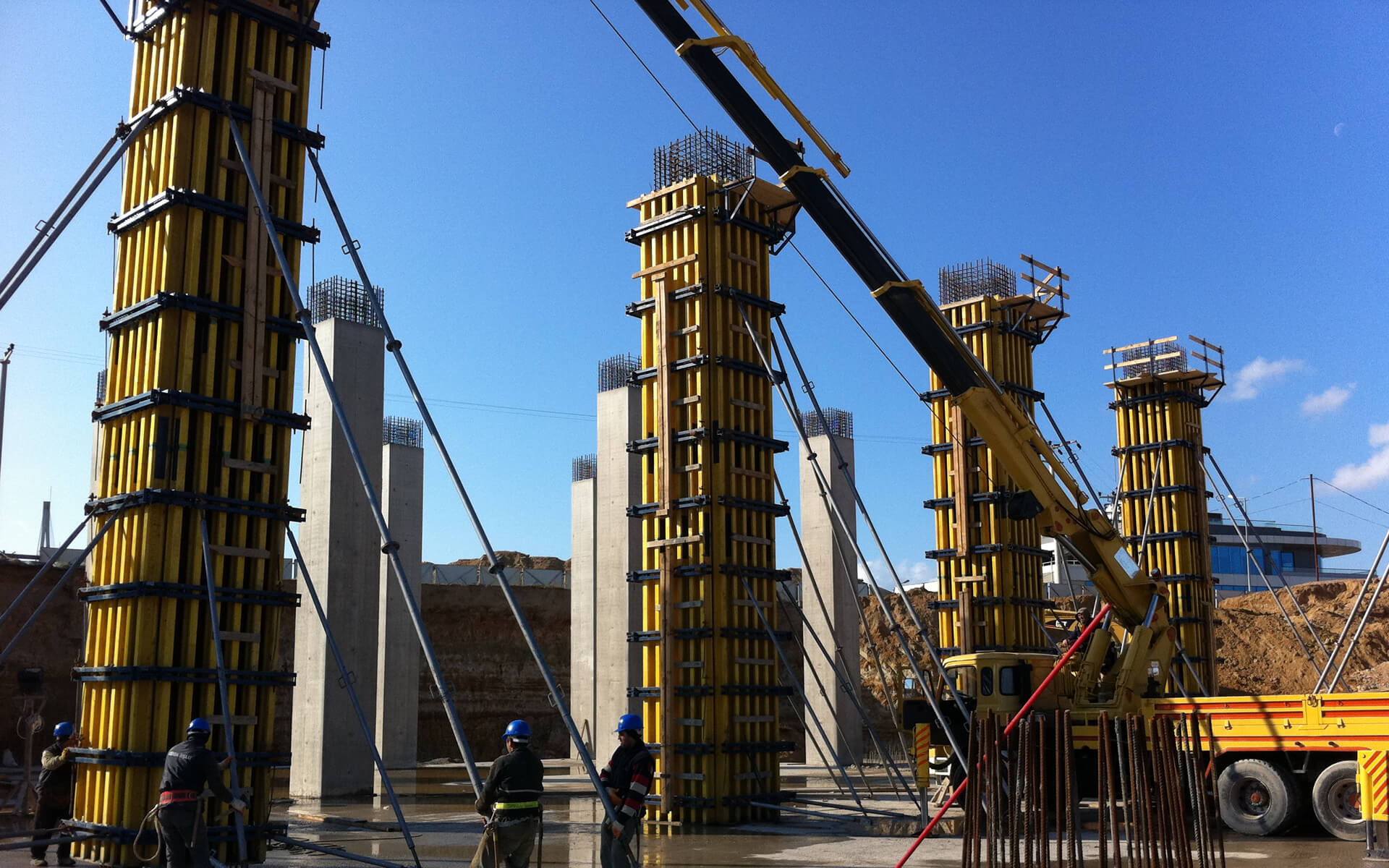

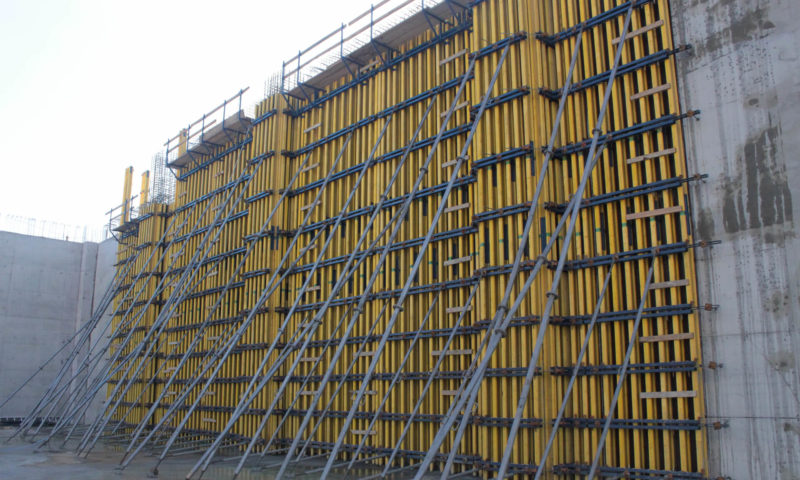

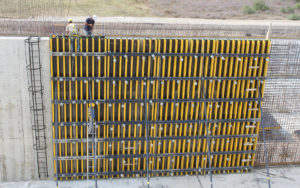

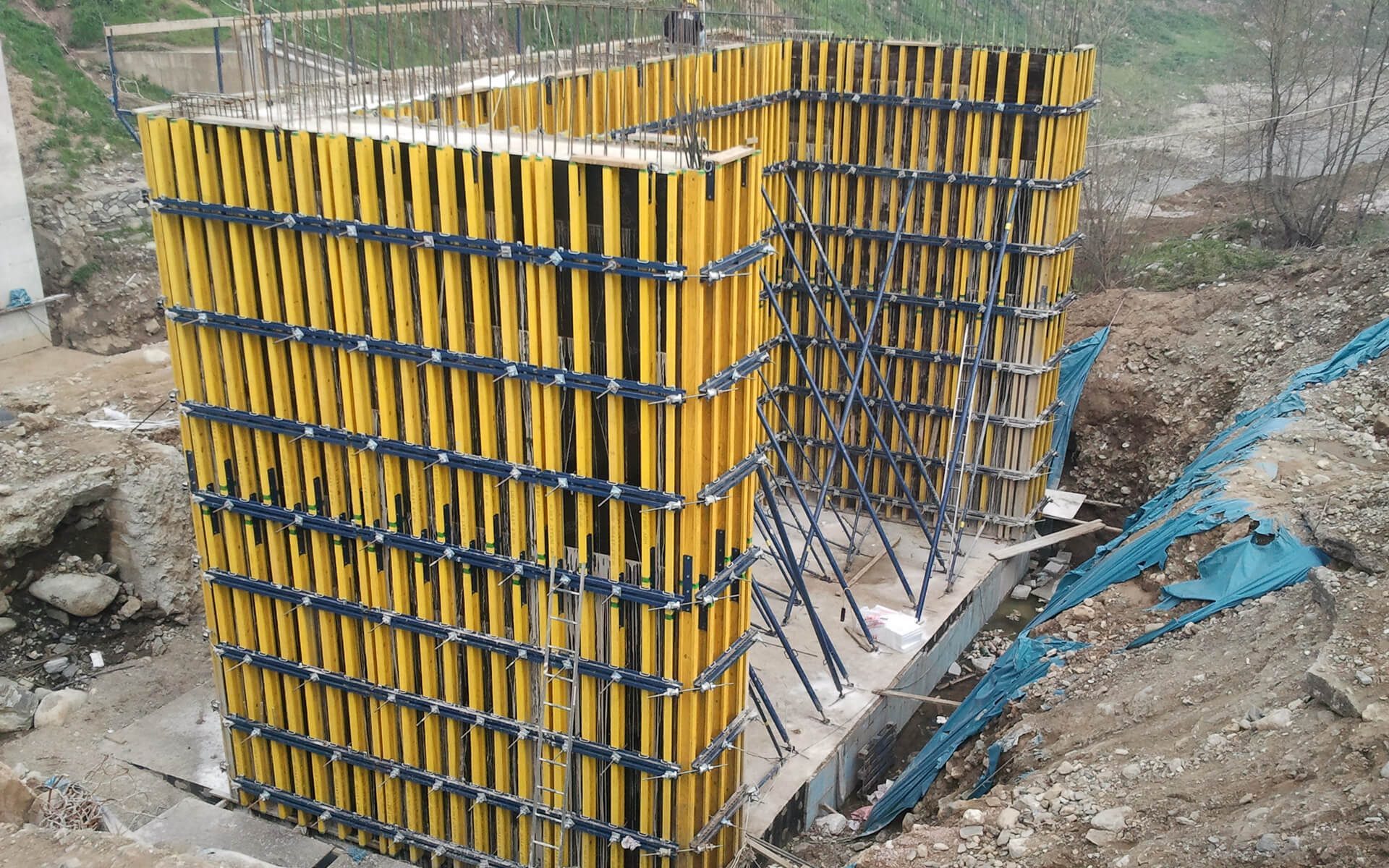

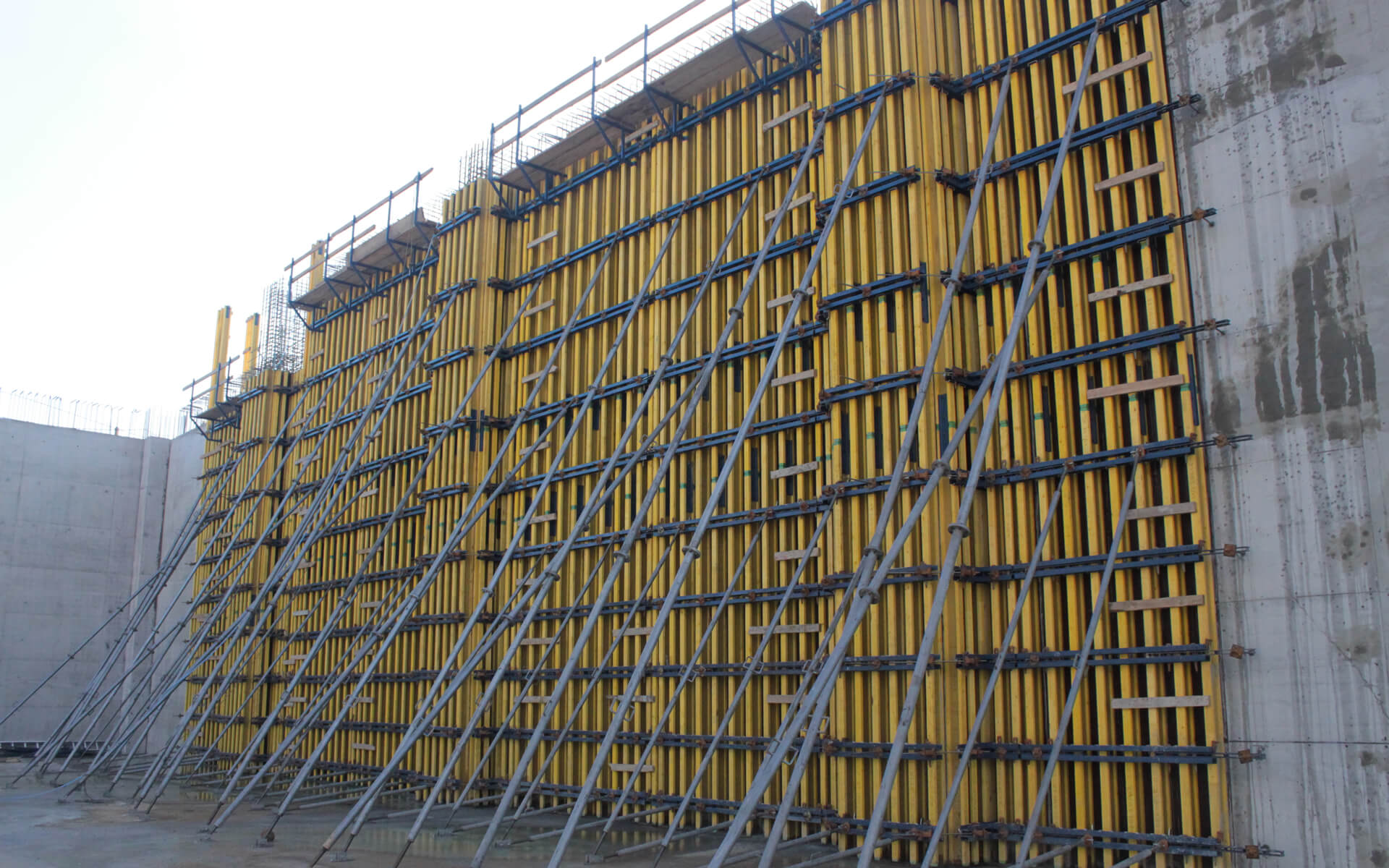

TIMBERFORM is a large area wall and column formwork system carried by Crane which is set with  vertical H20 wooden beams,  horizontal steel waler and plywood surfaced. H20 wooden beams are used in the vertical direction of the system are produced according to EN 13377 standards. The system can be adjusted to any height if the H20 wooden beams are used individually or added together. Our designs are in accordence with maximum 50 kN/m2 fresh concrete pressure in walls and 80 kN/m2 fresh concrete pressure in column.

It is also possible to design the system according to high concrete pressures and casting speeds by increasing or decreasing the number of H20 wooden beams in the vertical direction and increasing or decreasing the number of steel walers in the horizontal direction. Robotic cutting, drilling and welding processes are applied in our production. The steel products are cleaned with sandblasting before oven painting because of the industrial chemical oil. Upon request, our products can be hot dip galvanized according to TS 914 EN ISO 1461 standards.
